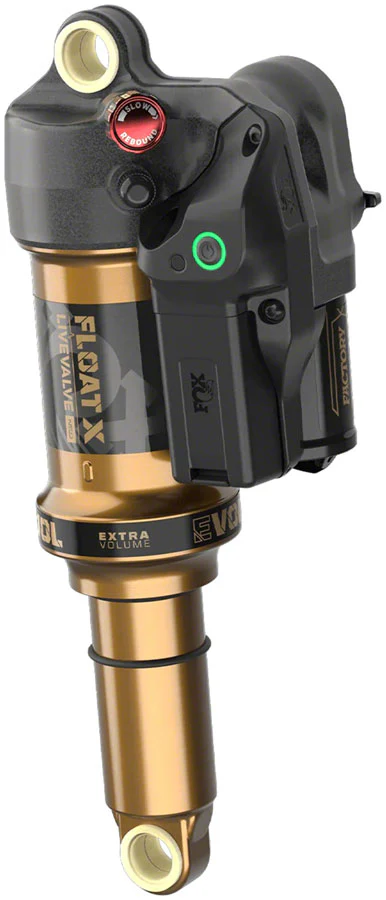

FOX FLOAT X Live Valve Neo Factory Rear Shock - Metric 230 x 60 mm 0.2 Spacer Live Valve EVOL LV Kashima Coat

The renowned FLOAT X teams up with Live Valve Neo for the ultimate in wireless suspension control. Together with the shock’s advanced damping fade free performance and class-leading durability the Controller will open or firm the compression circuit based on trail data in 1/70th of a second. Live Valve Neo reads terrain inputs 400 times per second and will instantly respond by giving you plushness or support. NOTE: The Live Valve Neo Kit (which includes sensors Controller battery and mounting hardware) is sold separately and is required for the FLOAT X Live Valve Neo shock to function.

IMPORTANT: The Live Valve Neo Kit (which includes sensors Controller battery and mounting hardware) is sold separately and is required for the FLOAT X Live Valve Neo shock to function

2-Position magnetic latching solenoid for quick and quiet transitions between open and firm shock positions

Tool-free firm mode adjuster controls the firmness of the shock's platform when the 2-position solenoid is closed

Numbered tool-free low speed compression adjuster provides 11 position settings that can easily be adjusted trailside

Numbered tool-free rebound adjuster shared with Float X

Shake to Wake function - When activated Live Valve Neo turns on automatically when the bike moves and wheels are bumped

A size-specific piggyback reservoir and EVOL air sleeve increase oil volume for enhanced bump sensitivity greater tire grip and fade-free performance over long descents

FOX bike app provides easy setup guides monitors battery levels downloads and engages Live Valve Neo tunes tracks service intervals and more

Stroke (mm)	60
Lockout Switch	Shock Mounted Switch
Metric	Yes
Eyelet Diameter (mm)	12.7
External Adjustments	Rebound Damping
Positive Spring	Air
Eye to eye length (mm)	230
